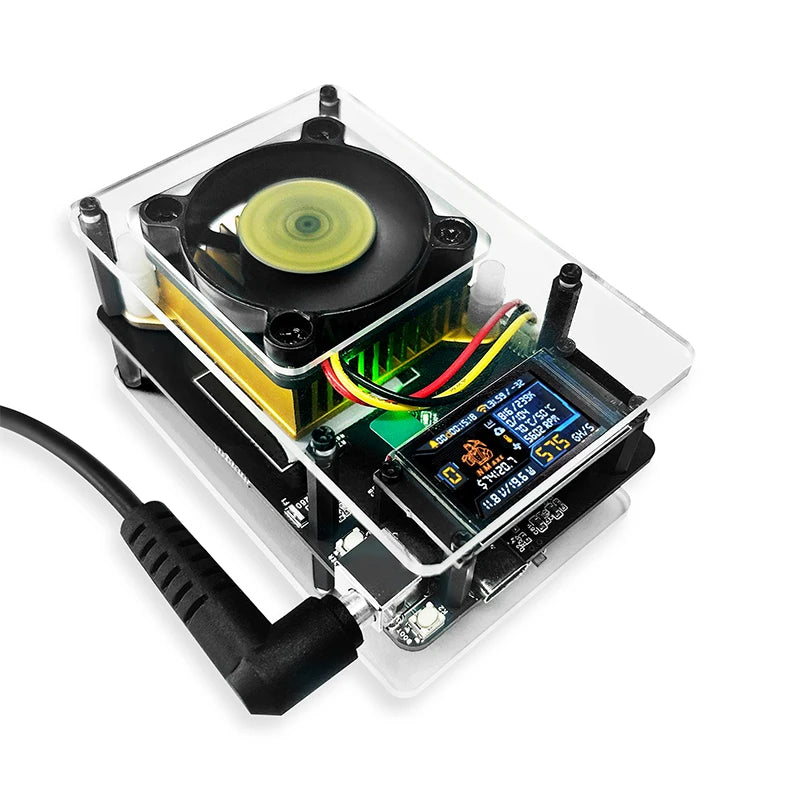

NMAxe Bitaxe NMMiner Official Ultra BM1366 Asic Chip 500G~600Gh/s Full
NMAxe Bitaxe NMMiner Official Ultra BM1366 Asic Chip 500G~600Gh/s Full

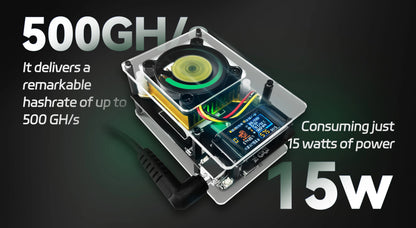

Notice: The hashrate is a fluctuating value that fluctuates around 500GH/s. And the parameter should set to Frequency 575MHz, and Vcore 1300 mV.
Open Source
The NMAxe is fork from the bitaxe, github :

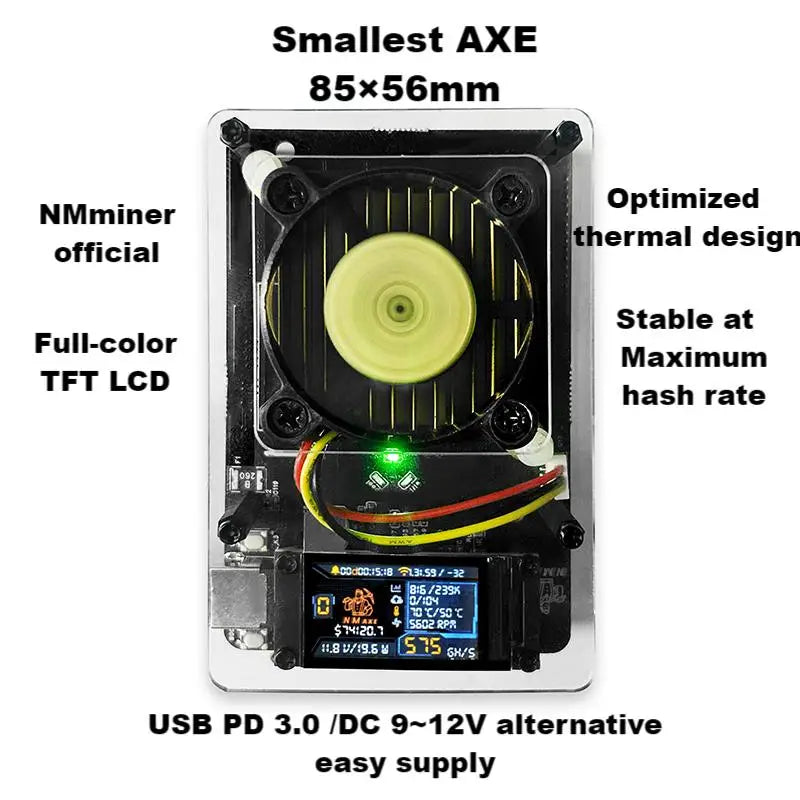

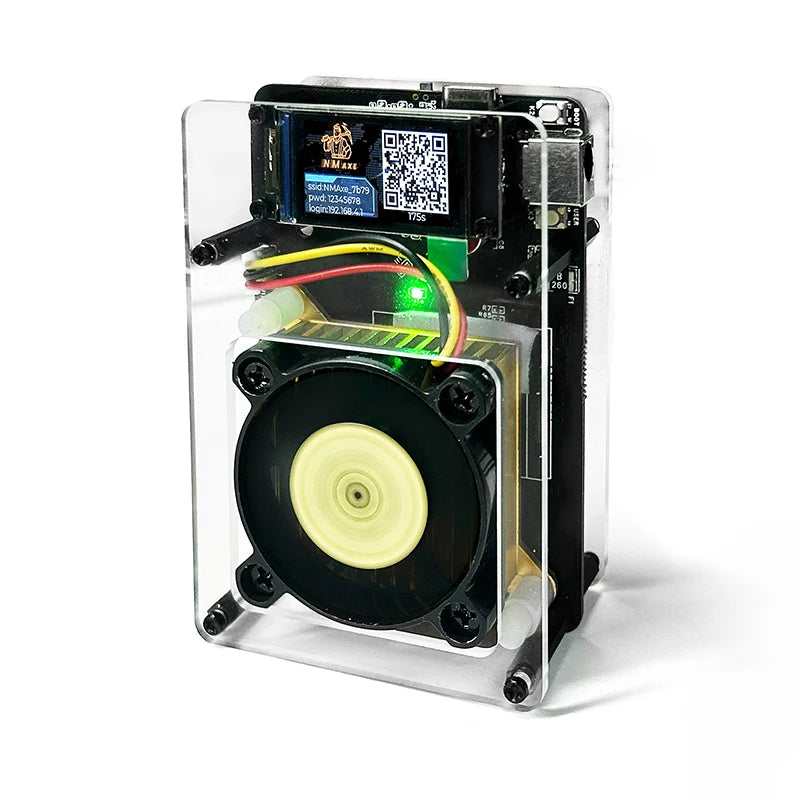

Main Features

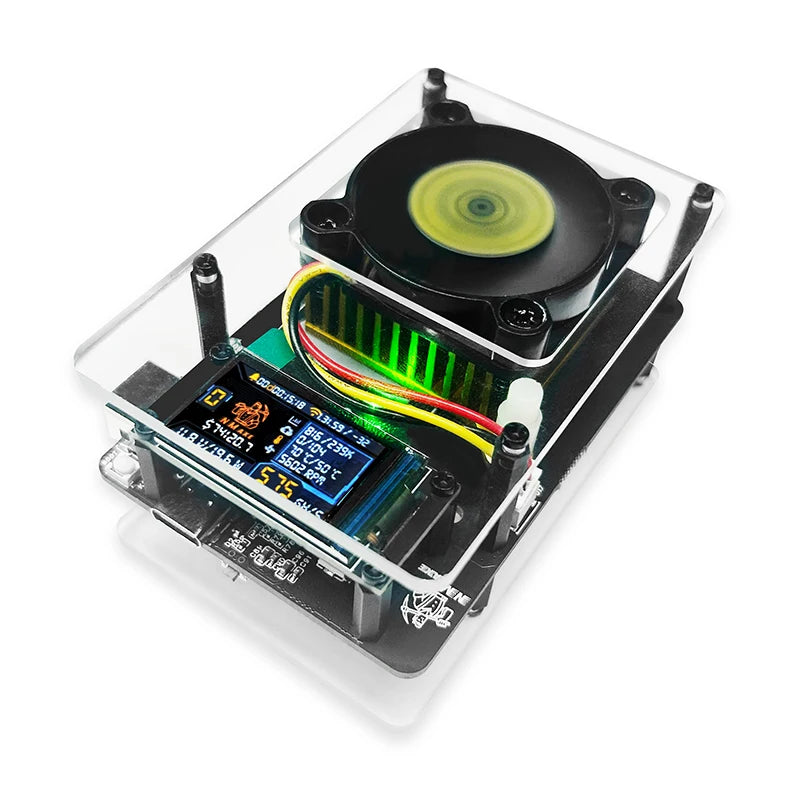

Full graphic screens over 1.14 inch IPS screen.
Two accessible buttons.
Bitmain’s BM1366AL chip.
Operates exclusively on 2.4 GHz Wi-Fi.

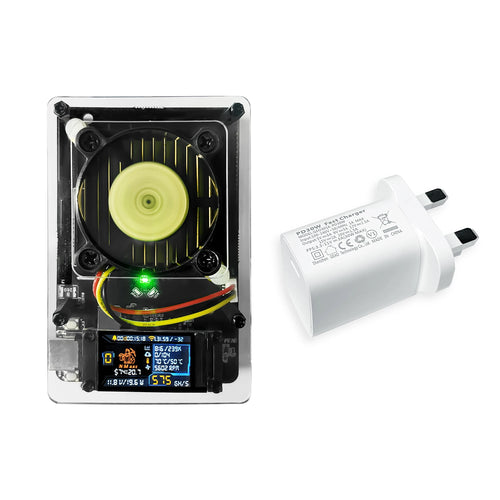

Requires a 12V power supply with at least 2A. Support USB-PD at least 12V/1.5A or 9V/2A.
Easy setup via the AxeOS portal.
Built-in website for monitoring.
Although the current mining capabilities of NMAxe position it as a solo miner compatible with any solo mining pool.
Support different Cryptocucrrency Solo mining, such as BTC/BCH/XEC/DGB.
Support NMMiner Controller, Can easily manage multiple devices.
The device is compatible with Raspberry Pi 5-size structure and can be compatible with Raspberry Pi related shell devices.
Improvements
The NMAxe support the "SSL connections", which solving the information security problems in some regions and countries.
NMTech Team support Group controller, which can helps to manage NMMiner and NMAxe devices together, with the NMController can easy to the AxeOS.

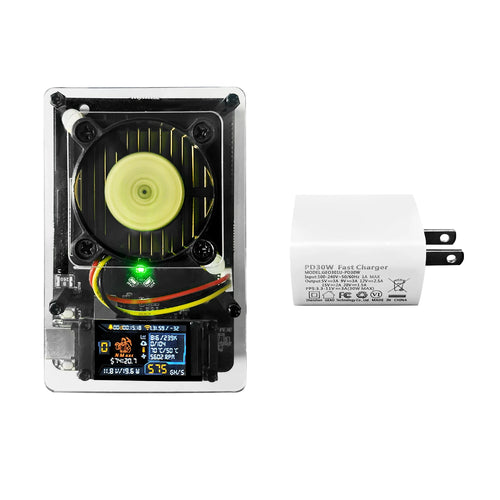

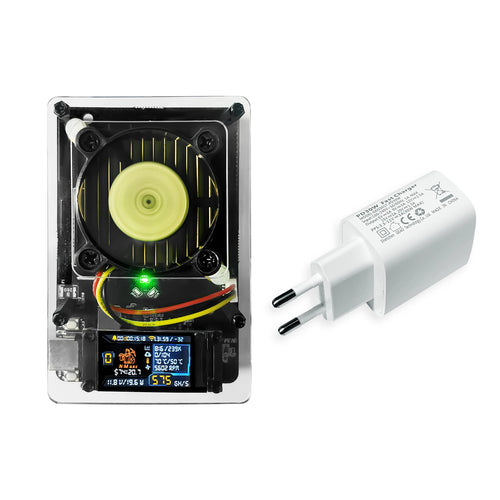

At the same time, the device supports "USB PD power supply", so common mobile Type-C adapters can used to power the NMAxe, even the Common Portable Power can supply the NMAxe. With a regular 10000 mAh power bank will over 1 hour.
So, even with a portable power bank and WiFi hotspot, you won't miss the opportunity to win a BTC block reward.
Specifications
Parameters |
Description |
Master Chip |
ESP32-S3R8 |
Wi-Fi |
802.11 b/g/n, up to 150Mbps |
Bluetooth |
Bluetooth LE: Bluetooth 5, Bluetooth mesh |
ASIC |
BM1366 |
Memory |
384KB ROM;512KB SRAM; 8MB PSRAM; 16MB SPI Flash |
Device management |
Web Service Axe OS / NMController |
Power Interface |
Type-C USB / DC 2.0 |
Operating Temperature |
-20 ~ 70 ℃ |
Dimensions |
85 * 56 * 44 mm |

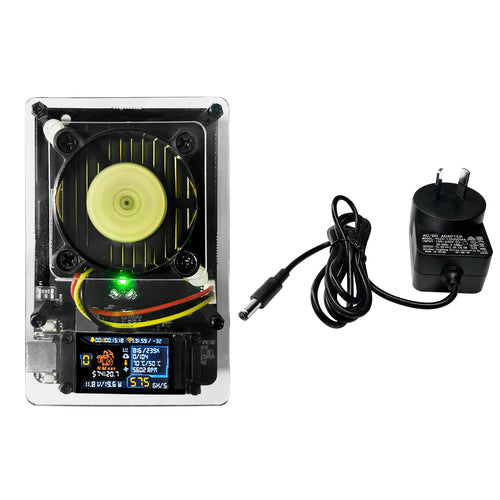

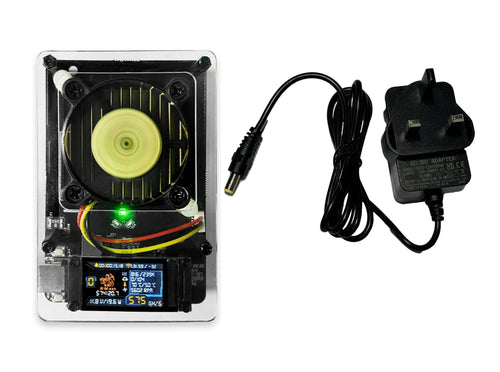

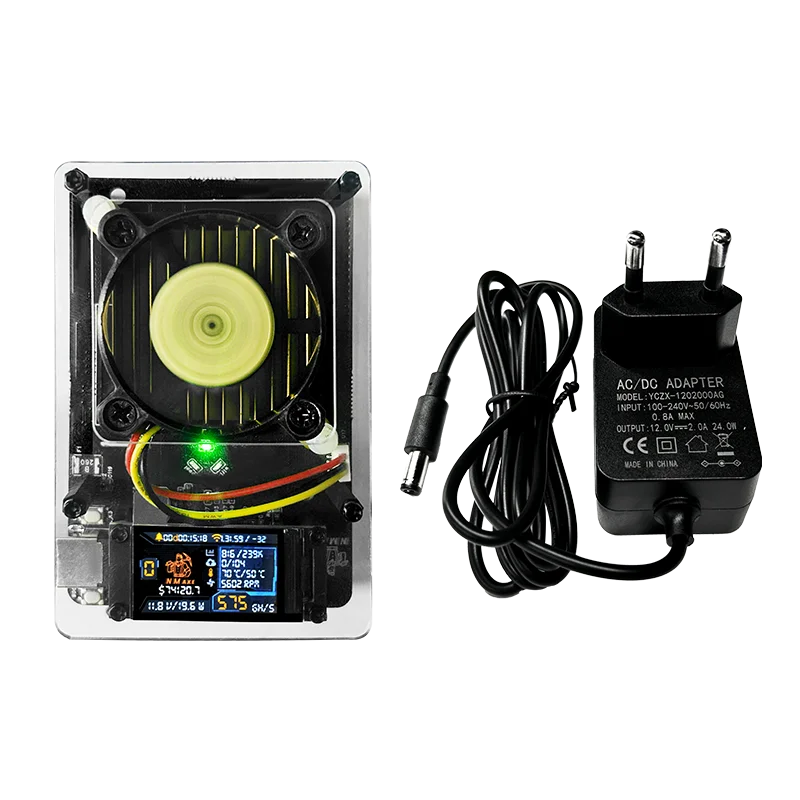

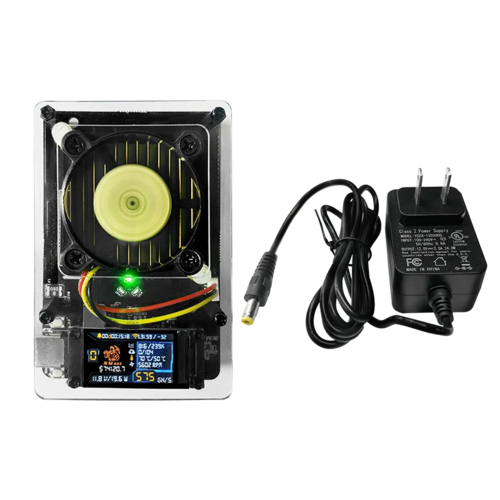

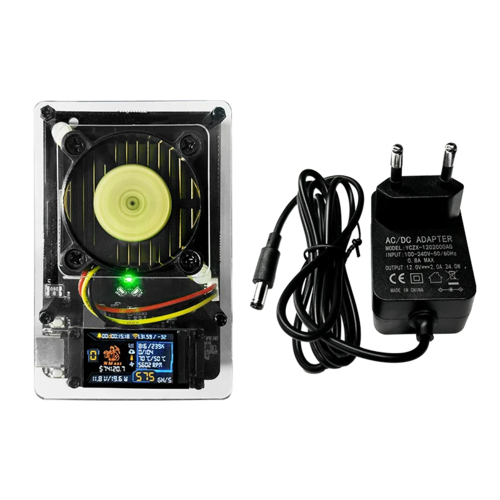

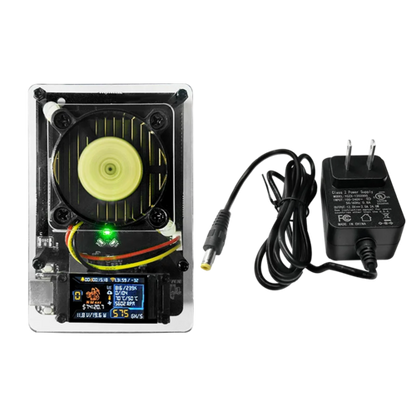

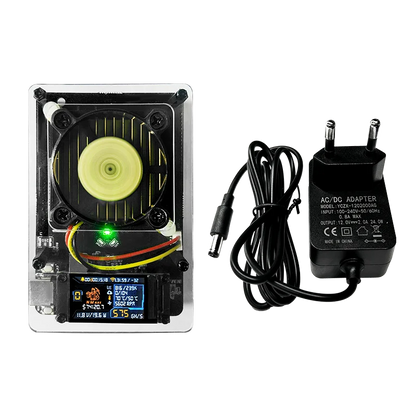

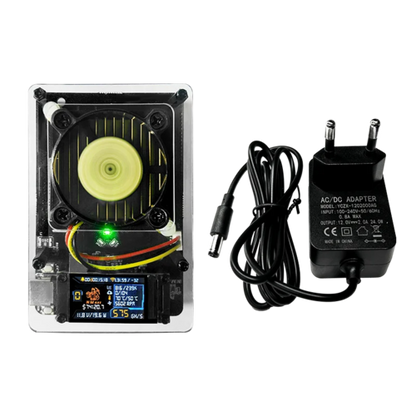

Parking List
The default packing list without selecting any accessories is as follows:
Item |
Quantity |
NMAxe |
x1 |
2V * 12A DC 2.0 Power |
x1 |
